ES Series System Overview
■ The ES Series Is A Passive Two-Way Compact Neodymium Line Source Array Speaker, Featuring A Small Size, High Sound Pressure Level, And Lightweight Design.
■ The Neodymium High-Frequency Driver Waveguide And Exponential Horn Work Together With A Plane Wave Converter To Produce A Consistent Wavefront. The Mid-Low Frequency Section Uses A 10-Inch Neodymium Woofer, With A Specially Designed Midrange Phase Plug Installed In Front Of The Driver To Prevent Interference Caused By Comb Filtering In The Midrange Band.
■ The Cabinet Features A Trapezoidal Design, Minimizing The Gap Between Cabinets And Reducing The Ineffective Sound Radiation Area Of The Entire Array. This Allows The Radiation Characteristics To More Closely Approach An Ideal Line Source. Each Cabinet Offers An Adjustable Angle From 0 To 10 Degrees, With 1-Degree Precision Adjustment.
■ Designed According To The Latest Line Source Theory, The High-Frequency Section Combines A Highly Sensitive HF Driver With A Dedicated Wave Correction Module. This Keeps The High-Frequency Radiation Lobe Within A Properly Designed Range And Effectively Improves High-Frequency Coupling Performance.
■ The Independently Developed High-Performance And Stable Driver Unit Features A Unique Aerodynamic Structure And Multi-Point Surface Design, Providing More Even Sound Field Coverage.
■ The Vertical Coverage Angle Of The High-Frequency Section Is Designed At 12 Degrees According To Its Directivity Design Principles, Effectively Avoiding Sound Interference Between Each Module.
■ By Fully Utilizing Wavefront Correction Technology, The System Delivers Clear And Accurate Sound Quality. It Also Provides A Unique Near-Field Effect, Bringing An Exceptional Listening Experience To The Audience.
■ The High-Strength Steel Grille Is Covered With An External Dustproof Mesh Fabric, Which Effectively Reduces Odd-Order Harmonics, Enhances Visual Appearance, And Protects The System Components During Use.
■ The Cabinet Is Made From Selected High-Density Russian Imported Birch Plywood, Bonded With Imported Wood Adhesive And Reinforced With Corner Bracing. It Is Carefully Crafted By Skilled Technicians And Finished With A Popular Water-Based Speckled Wear-Resistant Spray Coating For Long-Lasting Durability.

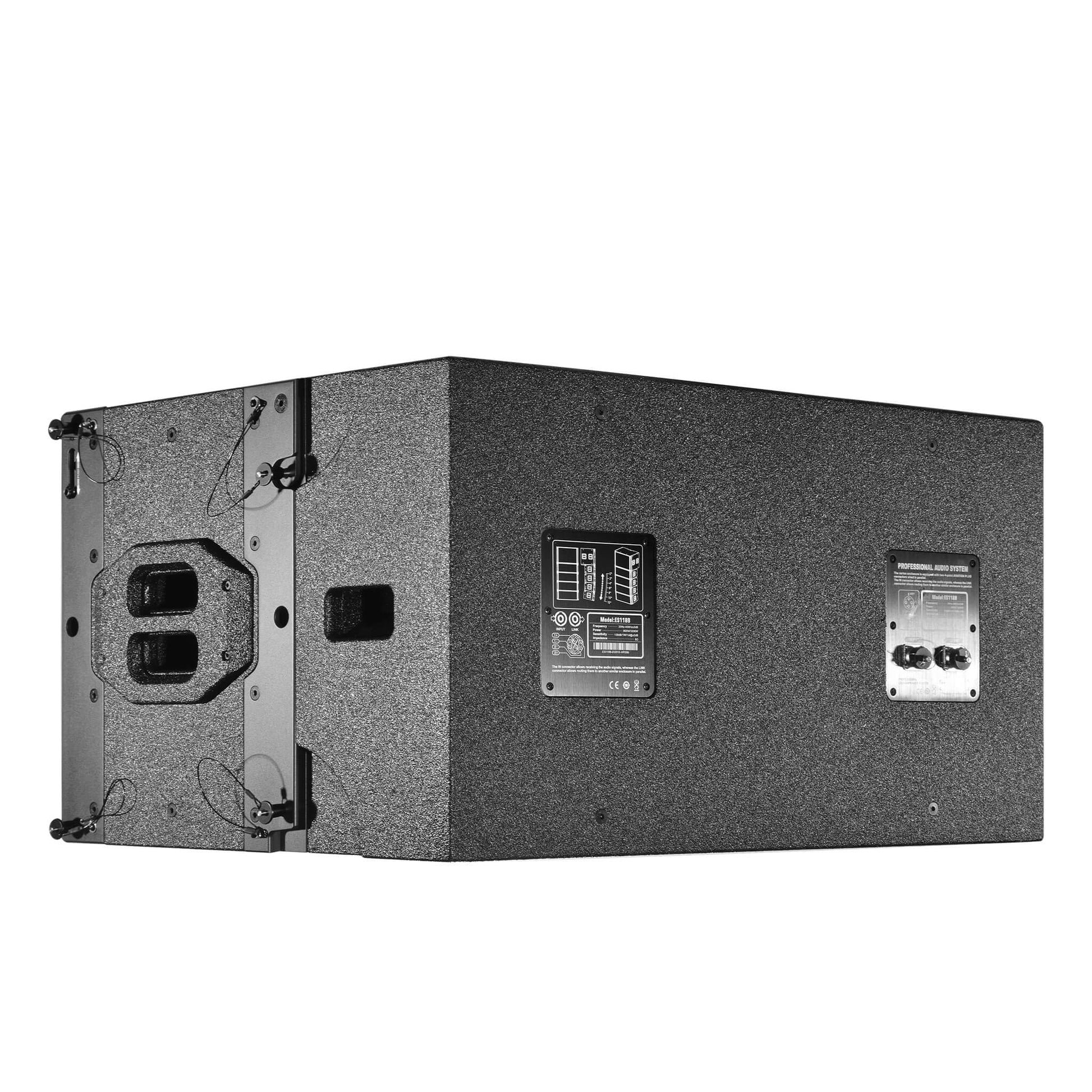

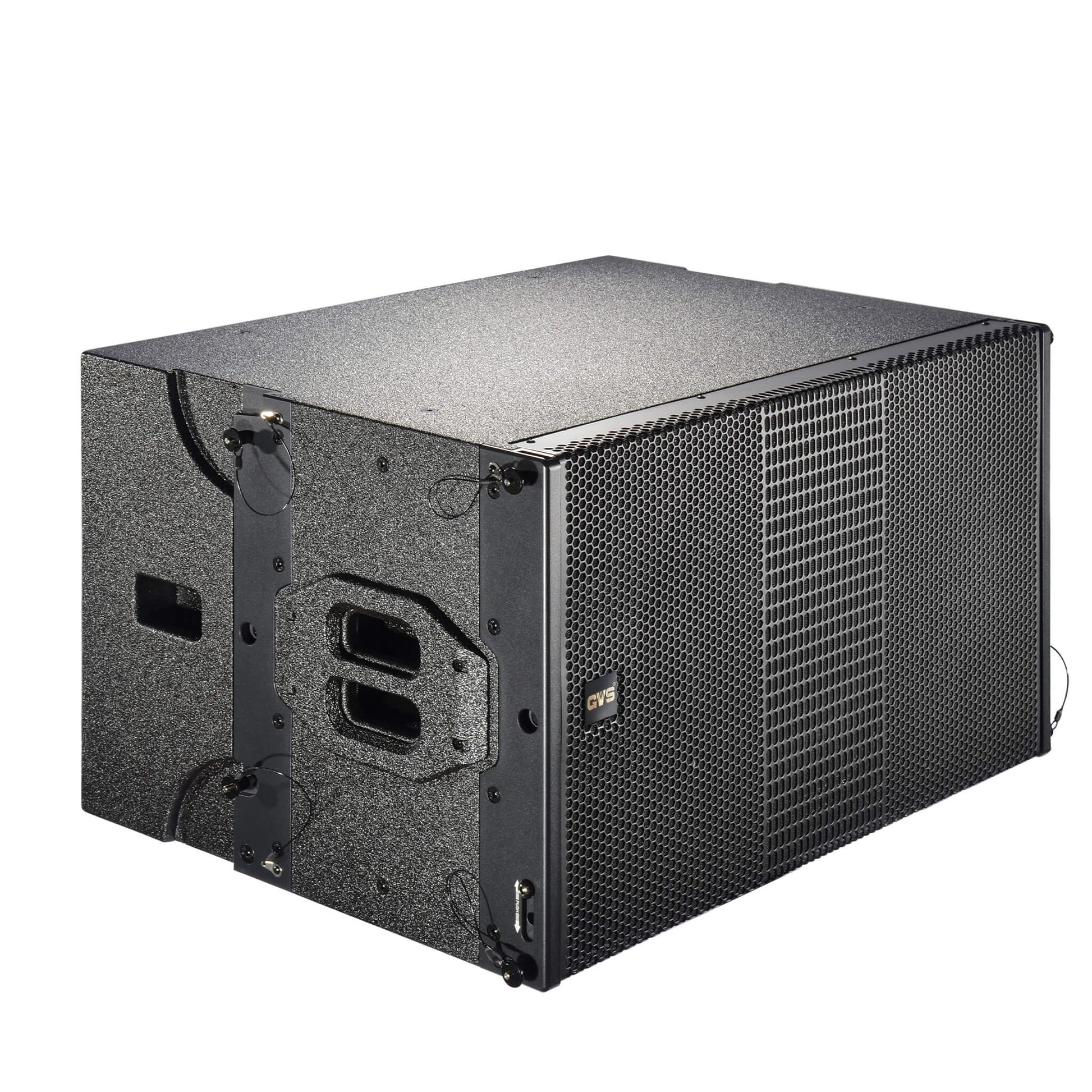

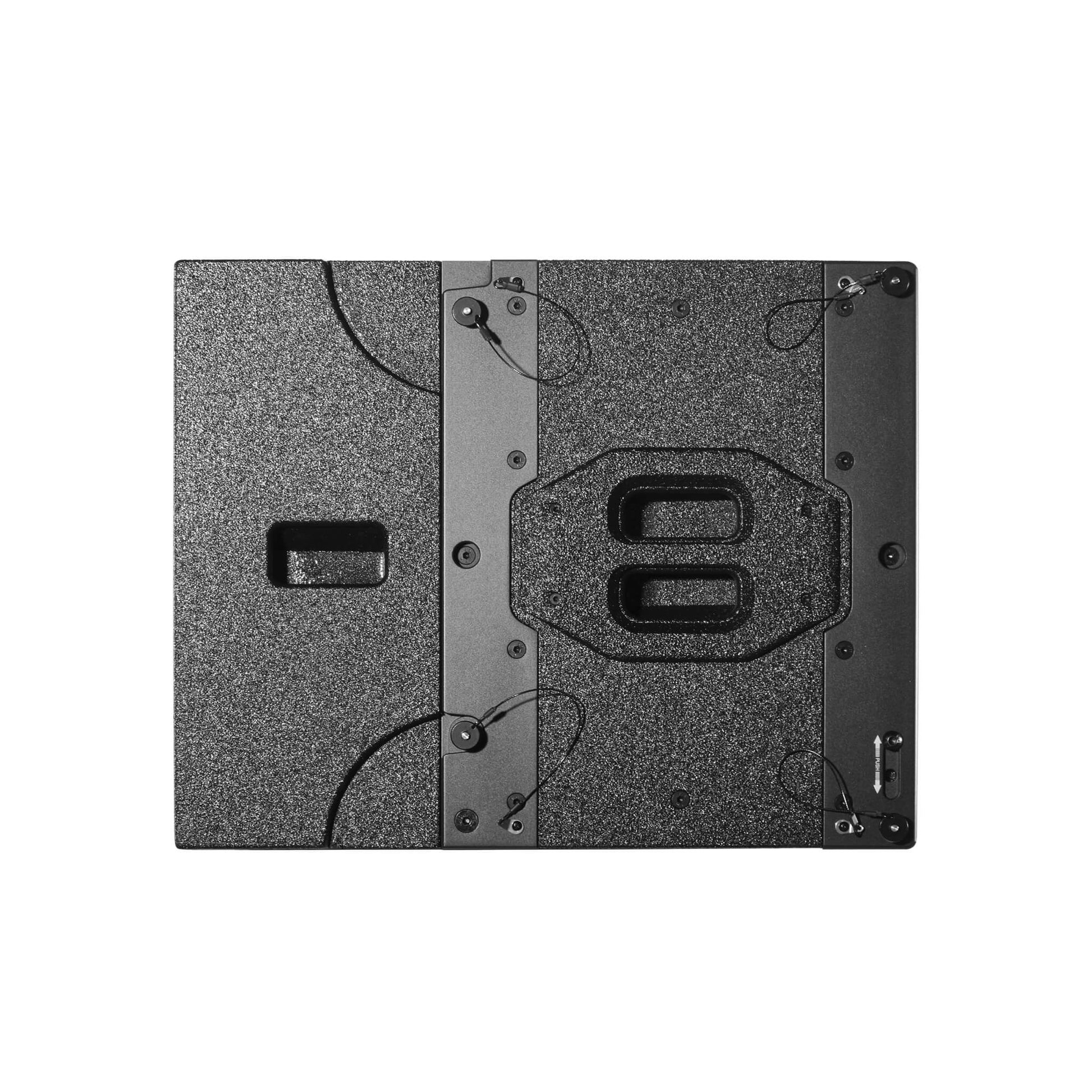

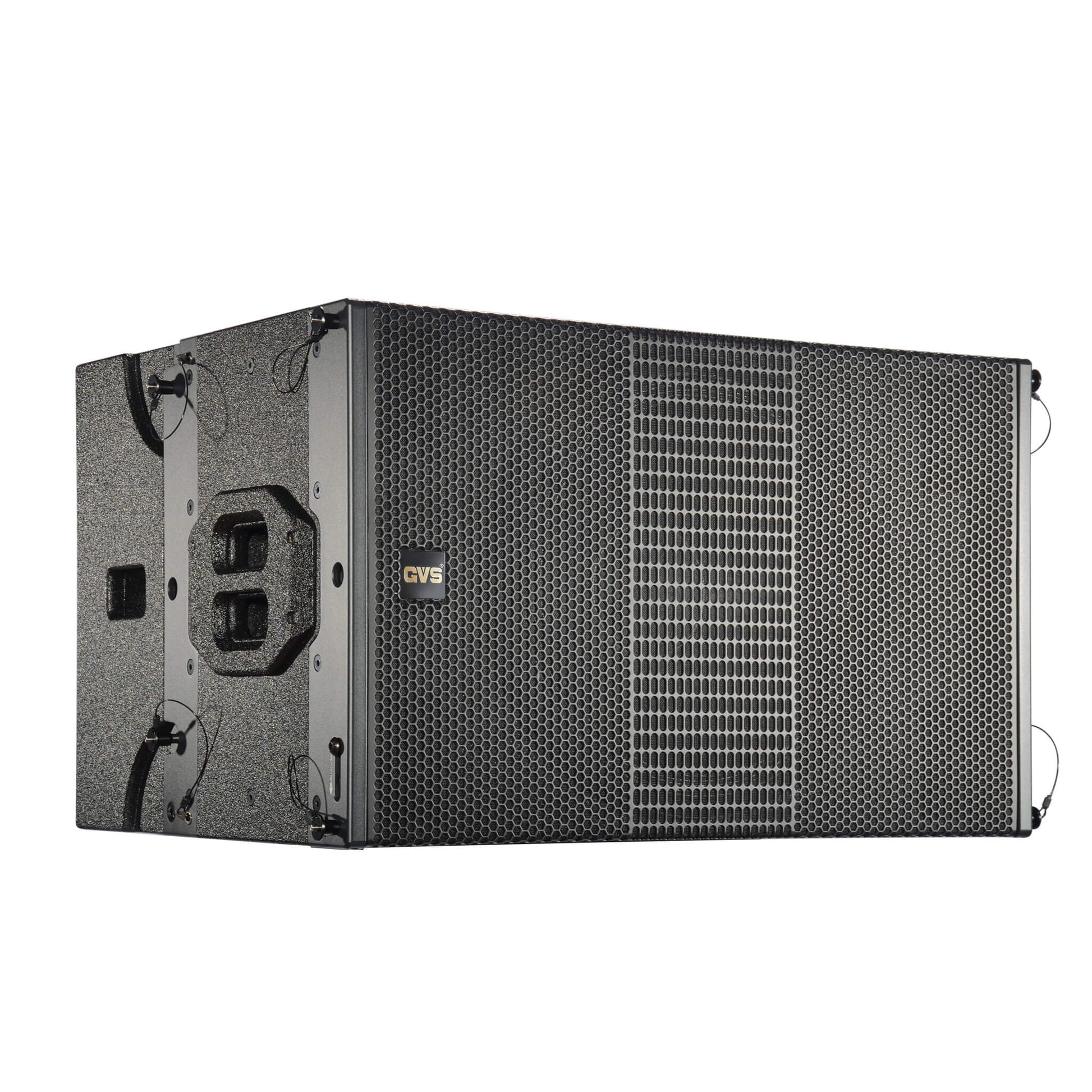

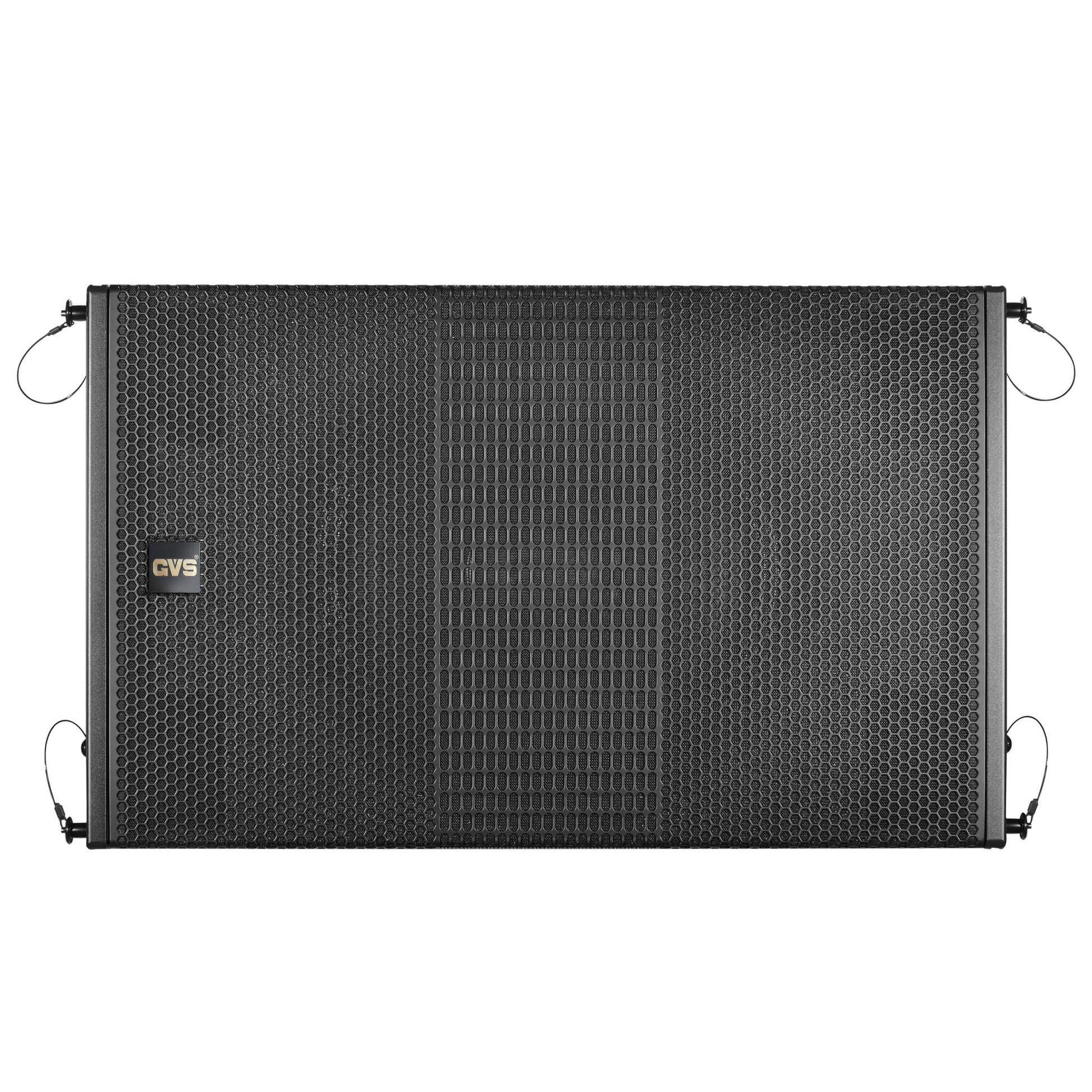

■ When Paired With The Dedicated ES Series Subwoofer, Airflow Guides Are Designed On Both Front Sides, And Special Airflow Guide Boxes Are Added Through The Side Handles To Reduce Low-Frequency Resonance. The System Delivers Excellent Performance With A Compact Size And Lightweight Cabinet. Its Three-Point Suspension Design Meets Both Rigging And Visual Installation Requirements. When Used Together With A Subwoofer, It Can Greatly Enhance The Low-Frequency Response.
