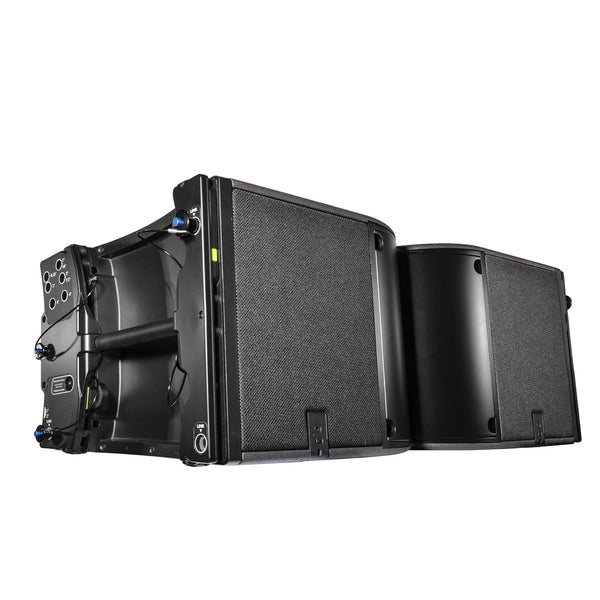

GVS-K3 Full-range. Compact. No compromises. 2-way active, dual 12"
Max SPL 143 dB
Bandwidth 42 Hz- 20 KHz
Transducers LF: 2 × 12’’
HF: 1 × 4’’
Weight 43 kg / 95 lb
Directivity H: 70° / 90° / 110°
V: 10°
You might like
Max SPL 143 dB
Bandwidth 42 Hz- 20 KHz
Transducers LF: 2 × 12’’
HF: 1 × 4’’
Weight 43 kg / 95 lb
Directivity H: 70° / 90° / 110°
V: 10°
Max SPL 142 dB
Bandwidth 55 Hz- 20 KHz
Transducers LF: 2 × 8’’
HF: 1 × 3’’
Weight 26 kg / 57 lb
Directivity H: 70° / 90° / 110°
V: 10°
Frequency Response: 50Hz–18kHz ±3dB
Sensitivity: 107dB/1W/1m ±2dB
Power Rating: 800W
Peak Power: 3200W
Tweeter Unit: 3" × 1 (170mm magnet, 75mm voice coil)
Woofer Unit: 12" × 2 (190mm magnet, 75mm voice coil)
Peak SPL: 132dB
Impedance: 8Ω
Directivity: 120° × 10°
Frequency Response: 55Hz–20kHz ±3dB
Sensitivity: 103dB/1W/1M ±2dB
Rated Power: 600W
Peak Power: 2400W
Tweeter Unit: 1.7" × 2 (102mm magnet, 44mm voice coil)
Woofer Unit: 10" × 2 (156mm magnet, 65mm voice coil)
Peak SPL: 127dB
Impedance: 8Ω
Directivity: 120° × 10°
Dimensions (W×H×D): 890 × 316 × 450 mm
Net Weight: 33.1 kg
Frequency Response: 60Hz–20kHz ±3dB
Sensitivity: 97dB/1W/1M ±2dB
Rated Power: 500W
Peak Power: 2000W
Tweeter Unit: 1.75" × 1 (115mm magnet, 44mm voice coil)
Woofer Unit: 8" × 2 (140mm magnet, 50mm voice coil)
Peak SPL: 116dB
Impedance: 8Ω
Directivity: 120° × 10°
Frequency Response: 65Hz–18kHz ±3dB
Sensitivity: 95dB/1W/1M ±2dB
Tweeter Unit: 1.75" × 1 (115mm magnet, 44mm voice coil)
Woofer Unit: 6.5" × 2 (100mm magnet, 35mm voice coil)
Peak SPL: 112dB
Impedance: 8Ω
Directivity: 120° × 10°
Frequencyy：50Hz-20kHz±3dB
Sensitivity：107dB/1W/1M@±2dB
Tweeter Unit：3" ×1 neodymium driver
Woofer Unit：10" ×2 neodymium driver
Peak SPL：135dB
Impedance：8Ω
Protective Finish：Black polyurea waterproof anticorrosive paint
Directivity：120×10（Deg）
Dimension(WxHxD)：824×280×400(mm)
weight：27kg
System Type：1×10" Two-Way Full-Range Line Array Speaker
Frequency Response：60Hz–20kHz ±3dB
Sensitivity：105dB/1W/1M ±2dB
Power Rating：400W
Peak Power：1600W
Tweeter Unit：1.75" ×2 Neodymium Compression Drivers (85MM Magnet, 44MM Voice Coil)
Woofer Unit：10" ×1 Neodymium Woofer (Internal Neodymium Magnet, 65MM Voice Coil)
Frequency：48Hz-20kHz±3dB
Sensitivity：107dB/1W/1M@±2dB
Tweeter Unit：1.75" neodymium×2
Woofer Unit：10"×2(156mag65coil)
Peak SPL：135dB
Impedance：8Ω
Directivity：120×10°
Frequency：40Hz-20kHz±3dB
Sensitivity：110dB/1W/1M@±2dB
PowerRating：1200W
PeakPower：4800W
Impedance：4Ω
WooferUnit：12"×2(190mag75coil)
MidUnit：6.5"×4(145mag50coil)
TweeterUnit：3"×2neodymiumdriver
PeakSPL：135dB
Connectors：NL4Speakon×2

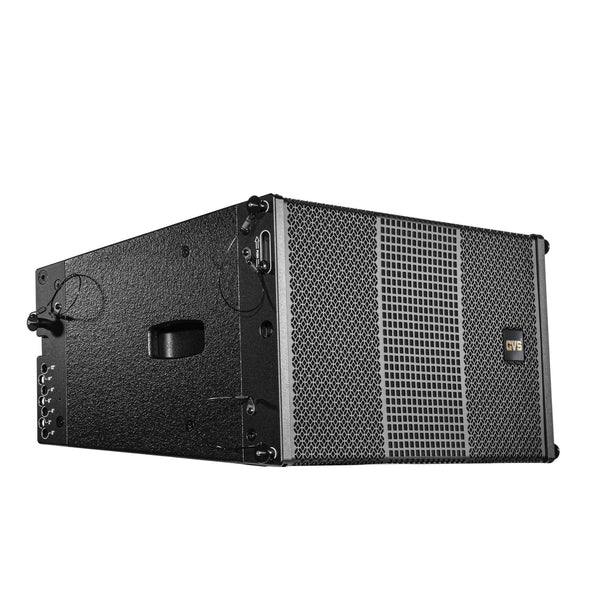

System Type: NC12 12-inch 2-way line array speaker
Frequency Response: 48Hz–20kHz ±3dB
Sensitivity: 106dB/1W/1m ±2dB
Rated Power: 500W
Peak Power: 2000W
Nominal Impedance: 8Ω
LF Driver: 12″ × 1 (Neodymium magnet, 75mm voice coil)
HF Driver: 1.75″ × 2 (Neodymium magnet, 44mm voice coil)
Max SPL: 133dB
Dispersion: 120° × 10° (H × V)
Dimensions: 600 × 341 × 460 mm (W × H × D)
Frequency Response: 48Hz–20kHz ±3dB
Sensitivity: 106dB/1W/1m ±2dB
Nominal Impedance: 8Ω
LF Driver: 12″ × 1 (Neodymium magnet, 75mm voice coil)
HF Driver: 1.75″ × 2 (Neodymium magnet, 44mm voice coil)
Max SPL: 133dB
Dispersion: 120° × 10° (H × V)
Dimensions: 600 × 341 × 460 mm (W × H × D)
Frequency Response: 51Hz–20kHz ±3dB
Sensitivity: 107dB/1W/1m ±2dB
Rated Power: 800W
Peak Power: 3200W
Nominal Impedance: 8Ω
LF Driver: 10" × 2 (Neodymium magnet, 65mm voice coil)
HF Driver: 1.75" × 2 (Neodymium magnet, 44mm voice coil)
Max SPL: 136dB
Dispersion: 120° × 10° (H × V)
Dimensions: 815 × 325 × 416 mm (W × H × D)
Frequency Response: 51Hz–20kHz ±3dB
Sensitivity: 107dB/1W/1m ±2dB
Rated Power: 800W
Peak Power: 3200W
Nominal Impedance: 8Ω
LF Driver: 10" × 2 (Neodymium magnet, 65mm voice coil)
HF Driver: 1.75" × 2 (Neodymium magnet, 44mm voice coil)
Max SPL: 136dB
Dispersion: 120° × 10° (H × V)
Dimensions: 815 × 325 × 416 mm (W × H × D)
Frequency Response: 57Hz–20kHz ±3dB
Sensitivity: 103dB/1W/1m ±2dB
Rated Power: 350W
Peak Power: 1400W
Nominal Impedance: 8Ω
Woofer: 10″ × 1
Tweeter: 1.75″ × 1
Max SPL: 128dB
Directivity: 120° × 10° (H × V)
Dimensions: 540 × 295 × 385 mm (W × H × D)
Frequency Response: 57Hz–20kHz ±3dB
Sensitivity: 103dB/1W/1m ±2dB
Rated Power: 350W
Peak Power: 1400W
Nominal Impedance: 8Ω
Woofer: 10″ × 1
Tweeter: 1.75″ × 1
Max SPL: 128dB
Directivity: 120° × 10° (H × V)
Dimensions: 540 × 295 × 385 mm (W × H × D)
Frequency Response: 57Hz–20kHz ±3dB
Sensitivity: 103dB/1W/1m ±2dB
Rated Power: 350W
Peak Power: 1400W
Nominal Impedance: 8Ω
Woofer: 10″ × 1
Tweeter: 1.75″ × 1
Max SPL: 128dB
Directivity: 120° × 10° (H × V)
Dimensions: 540 × 295 × 385 mm (W × H × D)
