GVS-K3 Full-range. Compact. No compromises. 2-way active, dual 12"

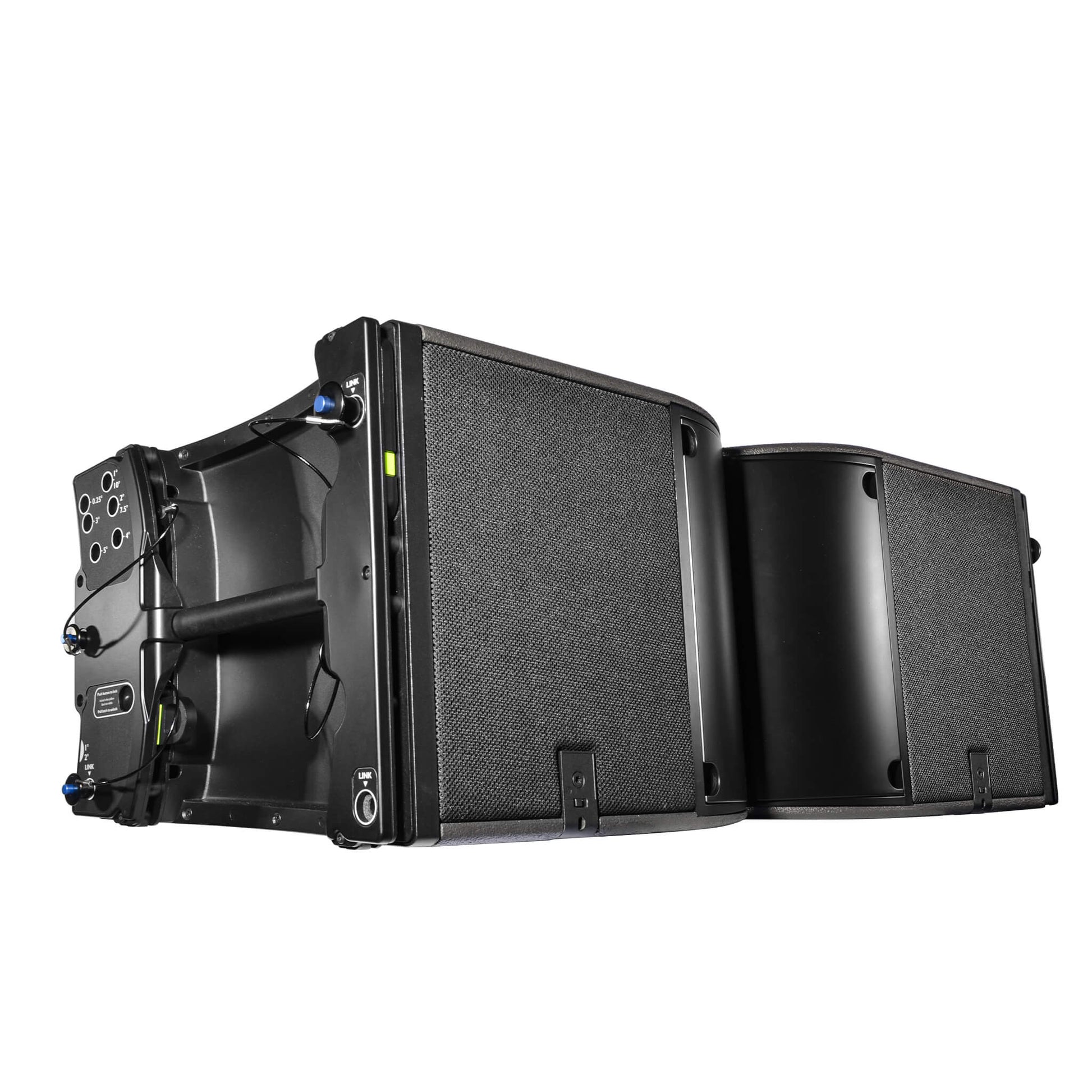

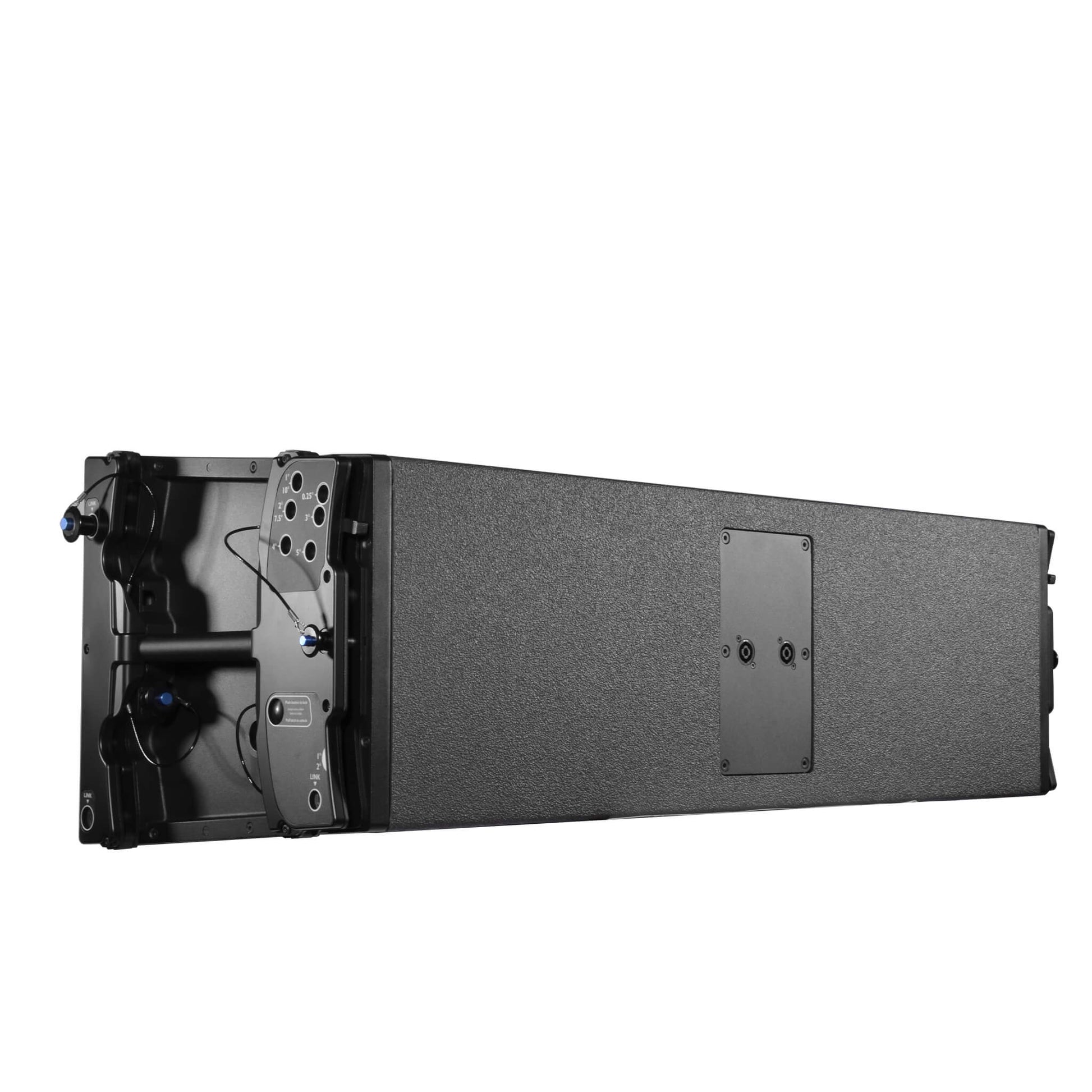

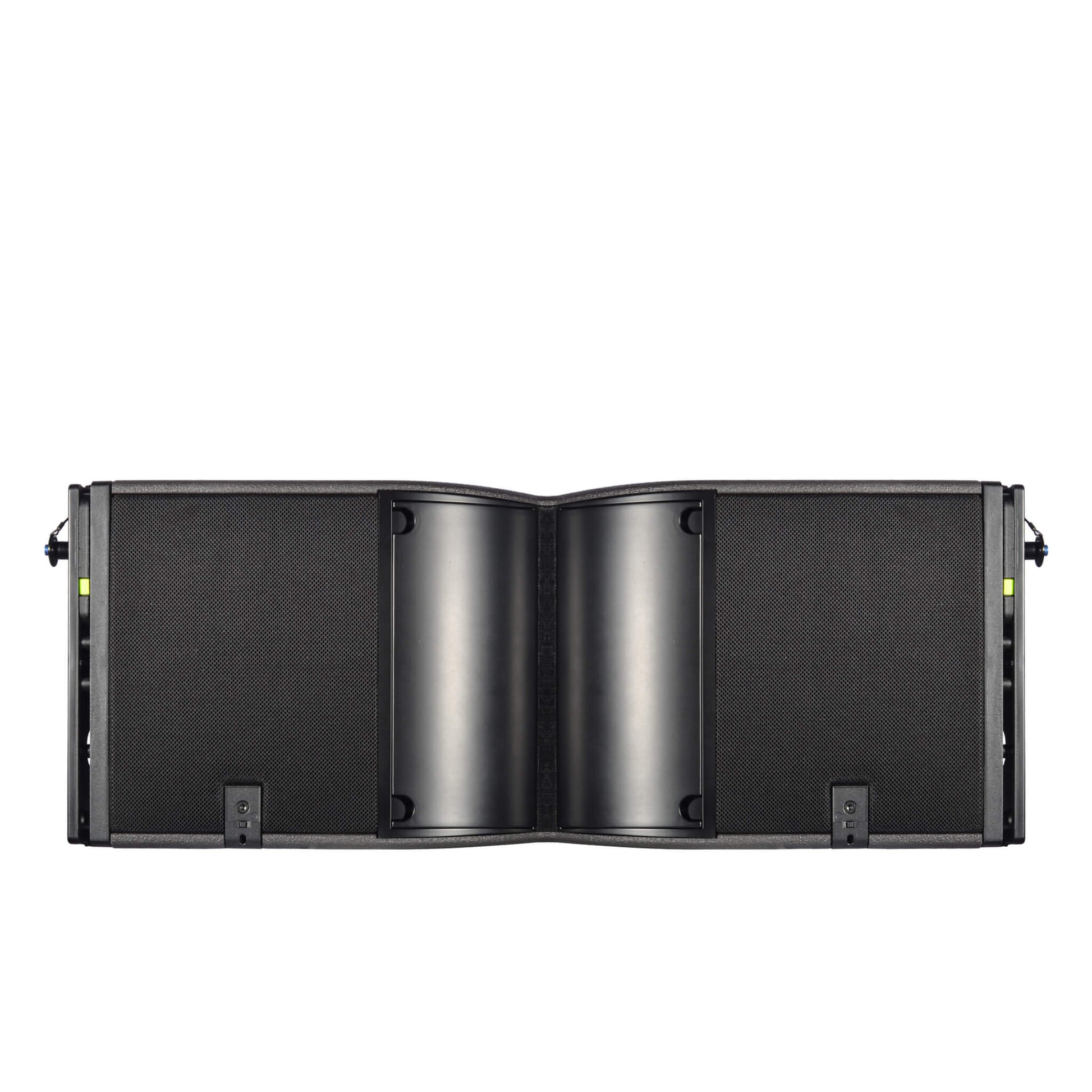

Dual 12-inch Line Array Speaker

Description

Max SPL    143 dB
Bandwidth    42 Hz- 20 KHz
Transducers    LF: 2 × 12’’
HF: 1 × 4’’
Weight    43 kg / 95 lb
Directivity    H: 70° / 90° / 110°
V: 10°

WhatsApp Contact Me For A Quote
View Product Details

Go directly to

System Data
Usable bandwidth (-10 dB)
42 Hz – 20 kHz ([K3 70])
Maximum SPL1
143 dB ([K3 70])
Nominal directivity (-6 dB)
horizontal: 70° / 110° symmetric or 90° asymmetric
vertical: depending on number of elements and array curvature
Transducers
LF: 2 × 12″ neodymium cone driver
HF: 1 × 4″ diaphragm compression driver, neodymium
Nominal impedance
LF : 8 Ω
HF : 8
Physical Specifications
Connectors
2 × 4-point speakON

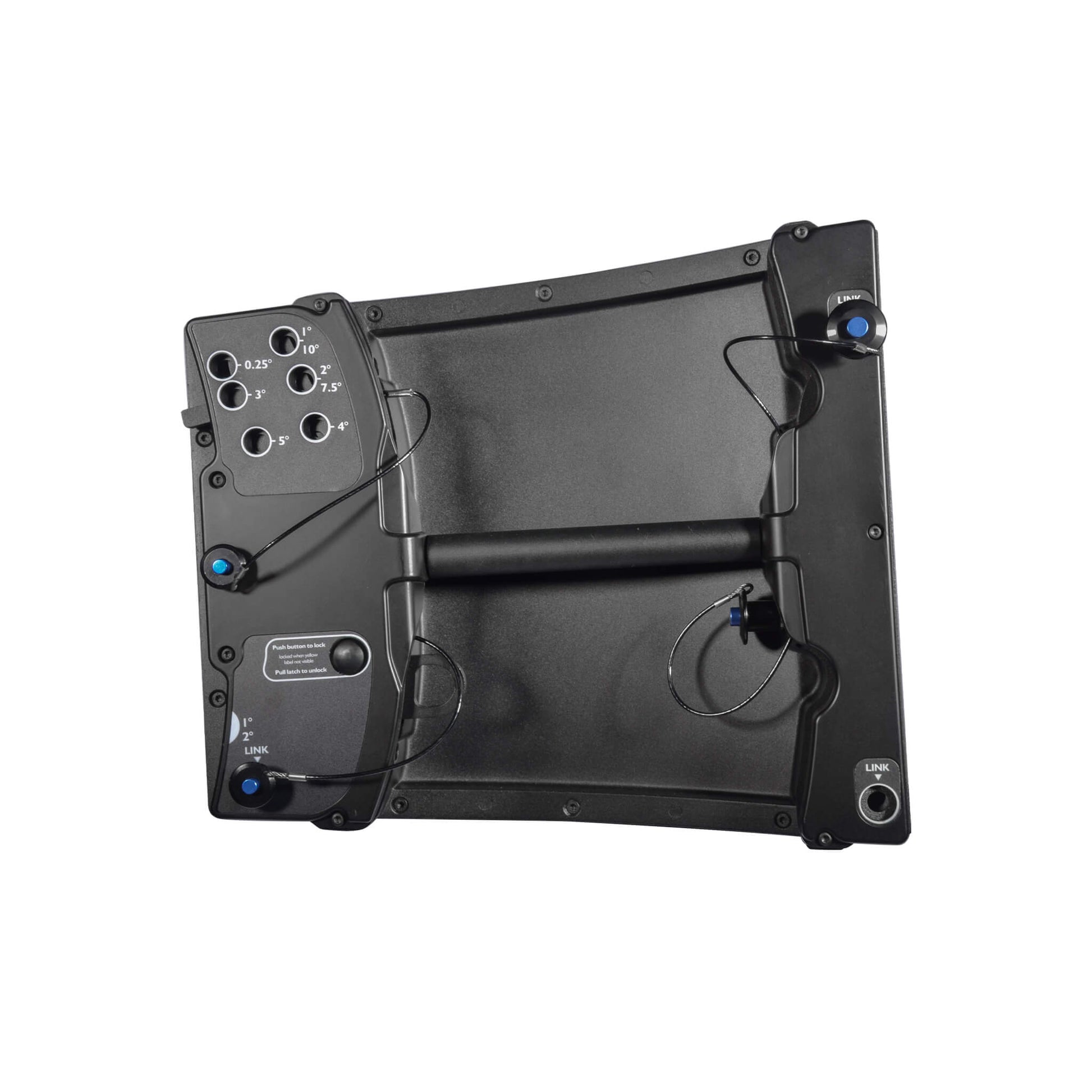

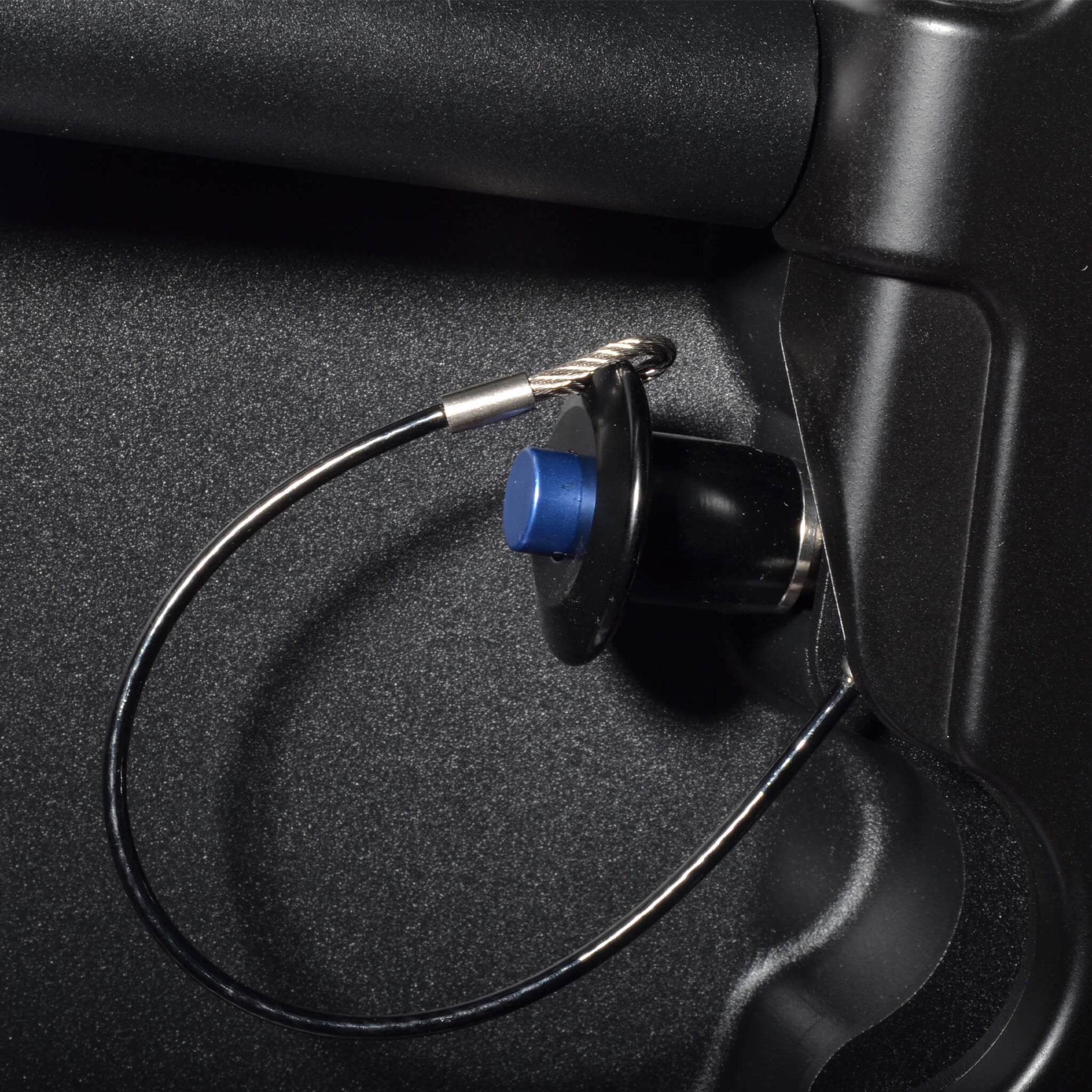

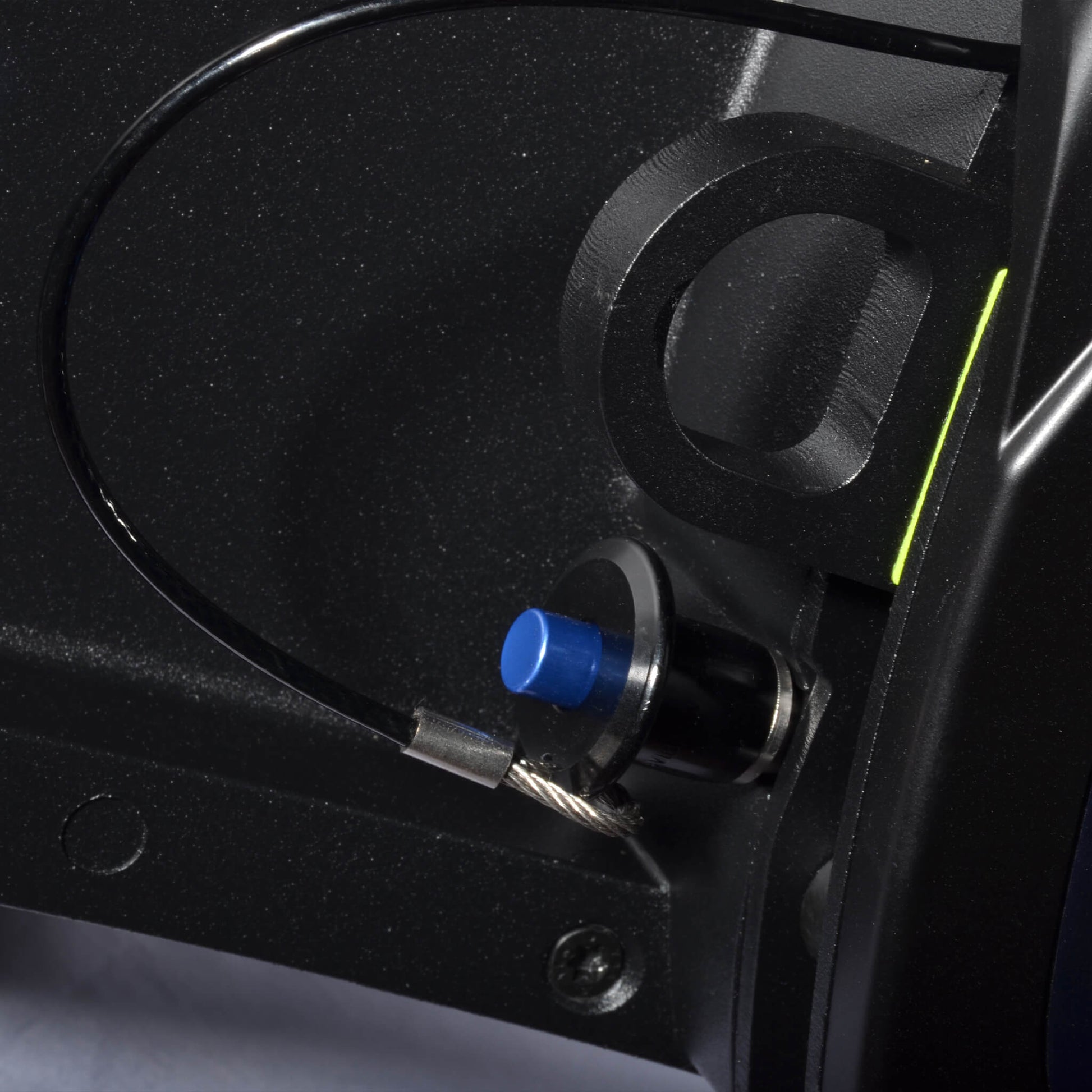

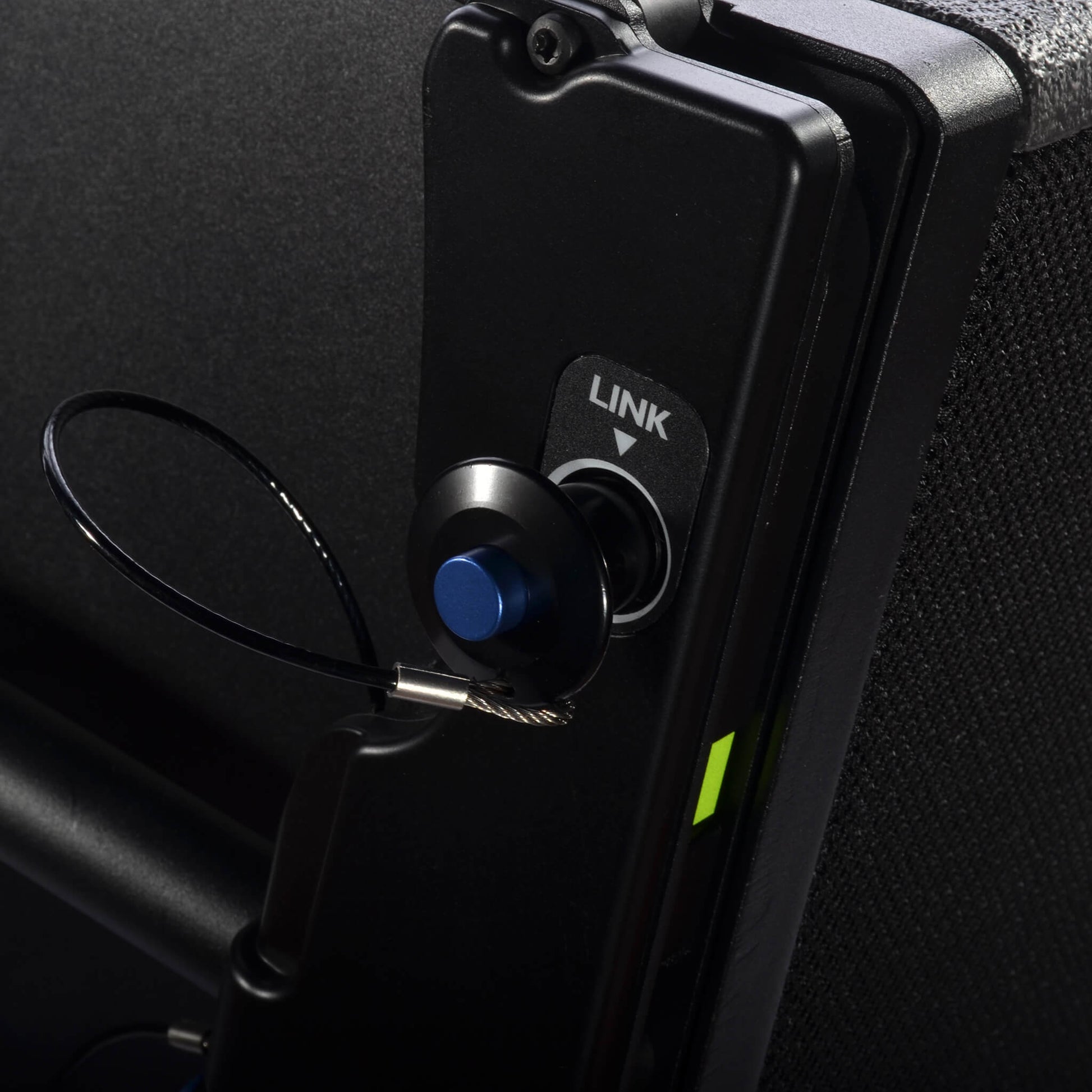

Rigging and handling
flush-fitting 4-point rigging system
2 handles
inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Dimensions
950 mm (37.4 in) / 357 mm (14 in) / 403 mm (15.9 in)
Weight (net)
43 kg / 95 lb
Cabinet
premium grade Baltic birch plywood
Front
coated steel grill
acoustically neutral 3D fabric
Rigging components
high grade steel with anti-corrosion coating
Finish
dark grey brown Pantone 426 C
IP55
