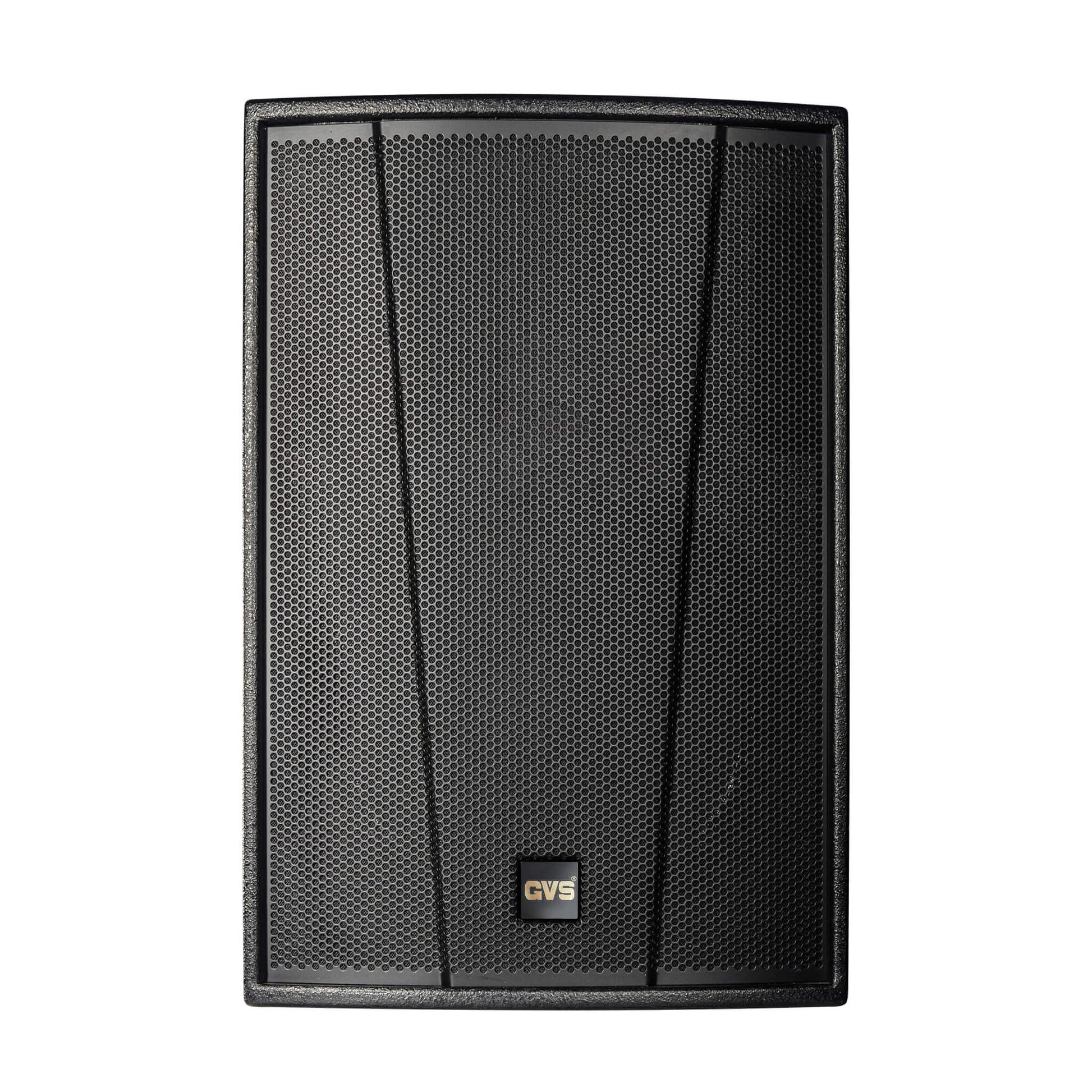

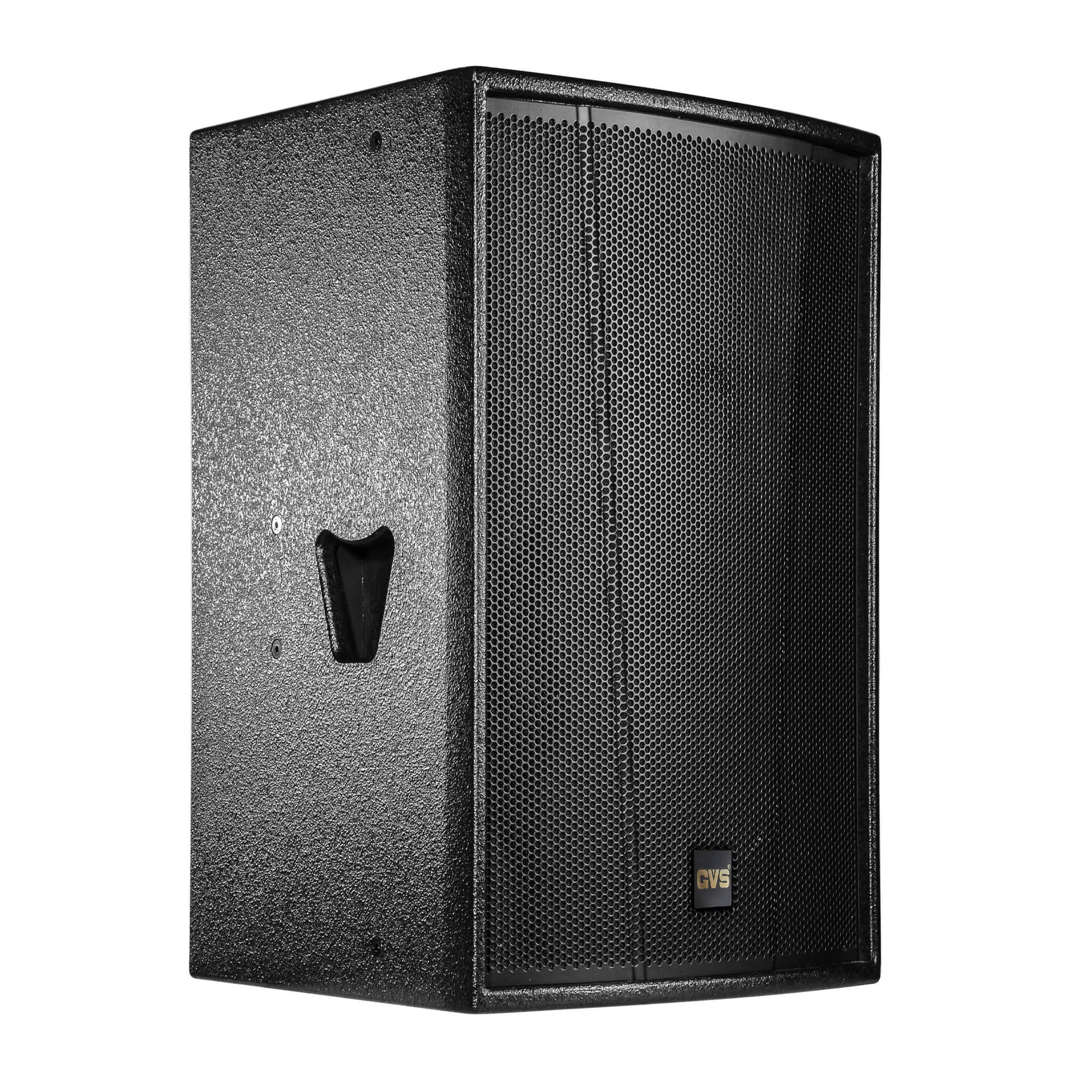

F12+ 12-Inch 2-Way Professional Full-Range Loudspeaker

12-inch 2-way full-range loudspeaker

Description

Frequency Response: 65hz–18khz ±3db
Sensitivity: 97db/1w/1m ±2db
Nominal Impedance: 8 Ohms
Woofer: 12″ × 1 (190mm Magnet, 75mm Voice Coil)
Tweeter: 1.75″ × 1 (120mm Magnet, 44mm Voice Coil)
Max Spl: 123db
Dispersion: 90° × 60° (H × V)

GVS AUDIO
View Product Details

describe

F+ Series System Overview
■ The F+ Series Is An Ideal Choice For Applications Requiring Efficient And Reliable Full-Range Loudspeakers. It Is Suitable For Both Fixed Installations And Rapid Mobile Event Setups.
■ The High-Frequency Section Features A 90° Horizontal × 60° Vertical Constant-Directivity Horn, Delivering Clearer, Brighter, And More Penetrating High-Frequency Reproduction. Combined With An Optimized Low-Frequency Driver, The System Provides Excellent Long-Throw Projection And Powerful, Responsive Bass.
■ The Special Trapezoidal Cabinet Design And Robust Enclosure Construction Facilitate Installation And Placement. The Cabinet Is Finished With Black Waterproof Polyester Coating, Providing Excellent Resistance To Water, Moisture, And Sunlight While Allowing Easy Routine Maintenance.
■ In Addition To Standard Rigging Hardware, A Metal Pole-Mount Socket Is Installed On The Bottom Of The Cabinet, Meeting The Installation Requirements Of Different Venues And Applications.

System Data
Frequency Response: 65hz–18khz ±3db
Sensitivity: 97db/1w/1m ±2db
Nominal Impedance: 8 Ohms
Rated Power: 400w
Peak Power: 1600w
Woofer: 12″ × 1 (190mm Magnet, 75mm Voice Coil)
Tweeter: 1.75″ × 1 (120mm Magnet, 44mm Voice Coil)
Max Spl: 123db
Connectors: Nl4 Speakon × 2
Enclosure Material: 15mm Bb-Grade Plywood
Finish: Black Wear-Resistant Textured Paint
Dispersion: 90° × 60° (H × V)
Dimensions: 410 × 610 × 370 Mm (W × H × D)
