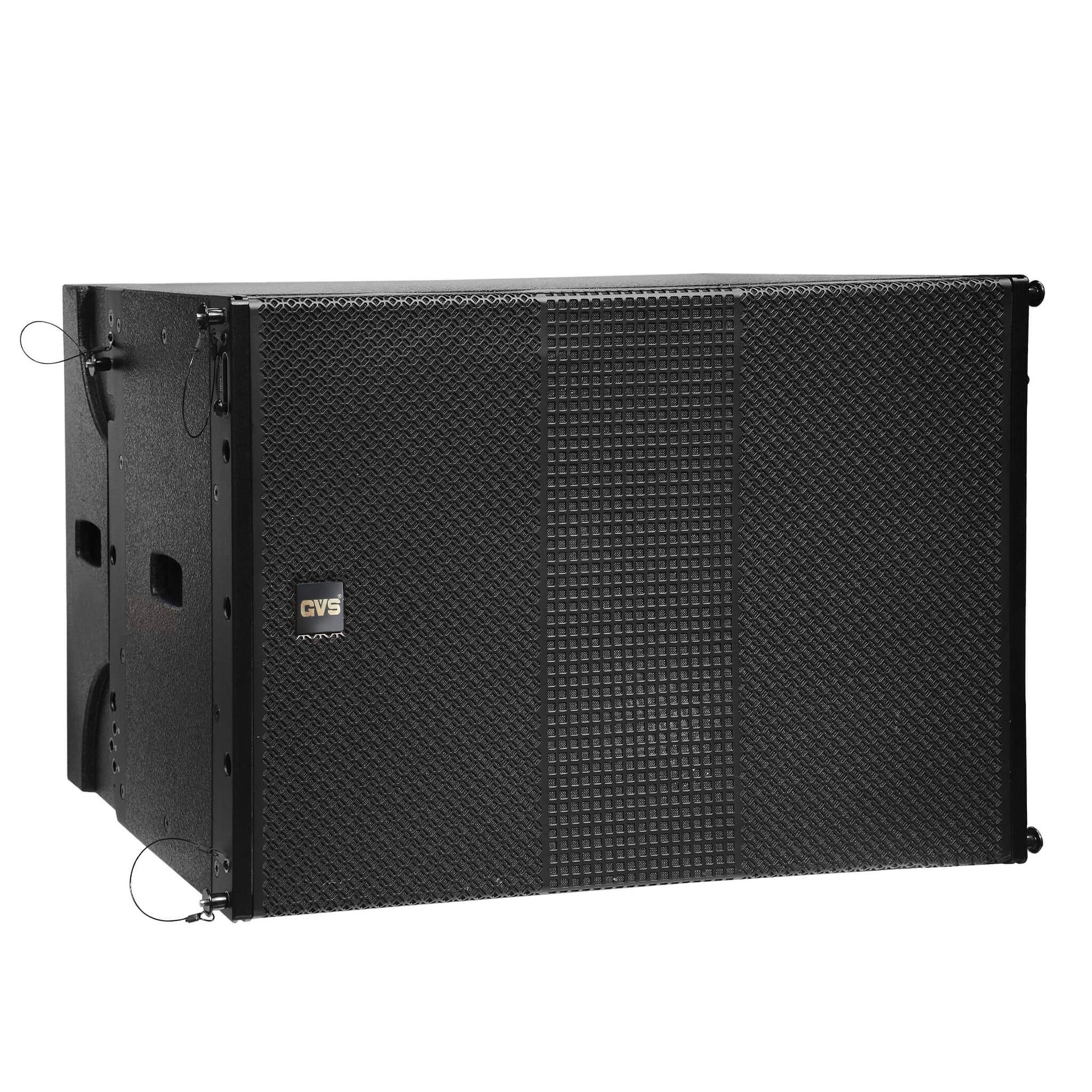

CXB18 18-inch Line Array Auxiliary Subwoofer Active

CXB18-CX210 18-inch Line Array Subwoofer

Description

Frequency Response: 35Hz–350Hz ±3dB
Sensitivity: 106dB/1W/1M ±2dB
Rated Power: 600W
Peak Power: 2400W
Nominal Impedance: 8Ω
Woofer: 18″ × 1 (Driver specs: 18-inch woofer, 220mm magnet, 100mm voice coil)
Maximum SPL: 133dB

GVS AUDIO
View Product Details

describe

■ The Line Array Loudspeaker System Is Designed In Strict Accordance With Line Source Theory, Effectively Controlling High-Frequency Radiation Lobes And Optimizing High-Frequency Coupling Performance. This Design Ensures Pure Sound Quality And Clear Audio Transmission.
■ Advanced Wavefront Correction Technology Delivers Clear And Accurate Sound Reproduction, Providing An Exceptional Listening Experience While Faithfully Capturing The Details And Dynamics Of Live Performances.
■ The Vertical Coverage Angle Is Precisely Engineered To Minimize Acoustic Interference Between Adjacent Modules, Ensuring A Consistent Sound Field, Uniform Coverage And Improved Overall Audio Performance.
■ The Line Array Loudspeaker Features A Four-Point Rigging Connection System With An Adjustable Splay Angle From 0° To 10°, Providing Flexible And Efficient Installation For A Wide Range Of Applications.
■ The Aluminum Alloy Rigging Components Offer High Strength, Lightweight Construction, Corrosion Resistance, Excellent Rigidity And An Attractive Appearance, Enhancing The Overall Stability, Durability And Visual Quality Of The System.
■ The Enclosure Is Carefully Constructed From High-Density Birch Plywood And Bonded With Imported Wood Adhesive To Ensure Outstanding Structural Strength And Stability. The Surface Is Finished With Environmentally Friendly Water-Based Wear-Resistant Textured Paint For Enhanced Durability.
■ The High-Strength Steel Grille Is Lined With Dustproof Acoustic Mesh, Helping To Reduce Odd-Order Harmonics While Protecting The Loudspeaker Components And Maintaining A Clean, Professional Appearance.
■ Two Neutrik Speakon NL4MP Connectors Are Provided For Flexible Connection Of Multiple Loudspeakers, Improving System Expandability And Simplifying The Design And Installation Of Professional Sound Reinforcement Systems.
■ With Its Excellent Acoustic Design, Efficient Installation System And Outstanding Durability, This Loudspeaker Is An Ideal Audio Solution For Professional Performances And Sound Reinforcement Projects Requiring High Standards Of Sound Quality And Reliability.

System Data
CXB18
System Type: 18-inch line array subwoofer
Frequency Response: 35Hz–350Hz ±3dB
Sensitivity: 106dB/1W/1M ±2dB
Rated Power: 600W
Peak Power: 2400W
Nominal Impedance: 8Ω
LF Driver: 18″ × 1 (Driver specs: 18-inch woofer, 220mm magnet, 100mm voice coil)
Max SPL: 133dB
Connectors: NL4 Speakon × 2
Enclosure Material: 18mm BB-grade plywood
Finish: Black wear-resistant textured paint
Directivity: N/A
Dimensions: 540 × 500 × 536 mm (W × H × D)
