SKU:

AC 110

15" 2-Way Coaxial Monitor Speaker

Description

Rated Output Voltage: AC 220V, 50/60Hz
Output Channels: 8 Controlled Channels Plus 2 Auxiliary Channels
Maximum Output Power: 7000W Total, 2000W Per Channel
Rated Output Current: 16A Per Channel, 30A Total
Delay Time: Independently Adjustable From 0–999 Seconds Per Channel

GVS AUDIO
View Product Details

describe



■ 2-Inch TFT Color LCD Display Shows The Current Voltage, Date, Time, And Channel On/Off Status In Real Time
■ Built-In Clock Chip Supports Scheduled Power-On And Power-Off Operation According To The Preset Date And Time
■ 8 Output Channels With Independently Adjustable Power-On And Power-Off Delay Times From 0–999 Seconds
■ Supports Storage And Recall Of Up To 10 Power Switching Scenes
■ Built-In Undervoltage And Overvoltage Detection With Alarm Protection
■ Total Output Power Of 7000W, With A Maximum Output Power Of 2000W Per Channel
■ Front Panel USB Port Provides One 5V DC Power Output
■ RS485 Interface Supports Cascaded Control Of Multiple Devices With Automatic Cascade Status Detection And Configuration
■ RS232 Interface Supports External Central Control Systems
■ Supports Remote Centralized Control With Individual Device ID Detection And Setting
■ Panel Lock Function Prevents Accidental Or Unauthorized Operation
■ Adaptive RJ45 Network Port Supports Automatic LAN Connection And Remote Control Through PC Software Or An Android Mobile App

System Data
Technical Specifications

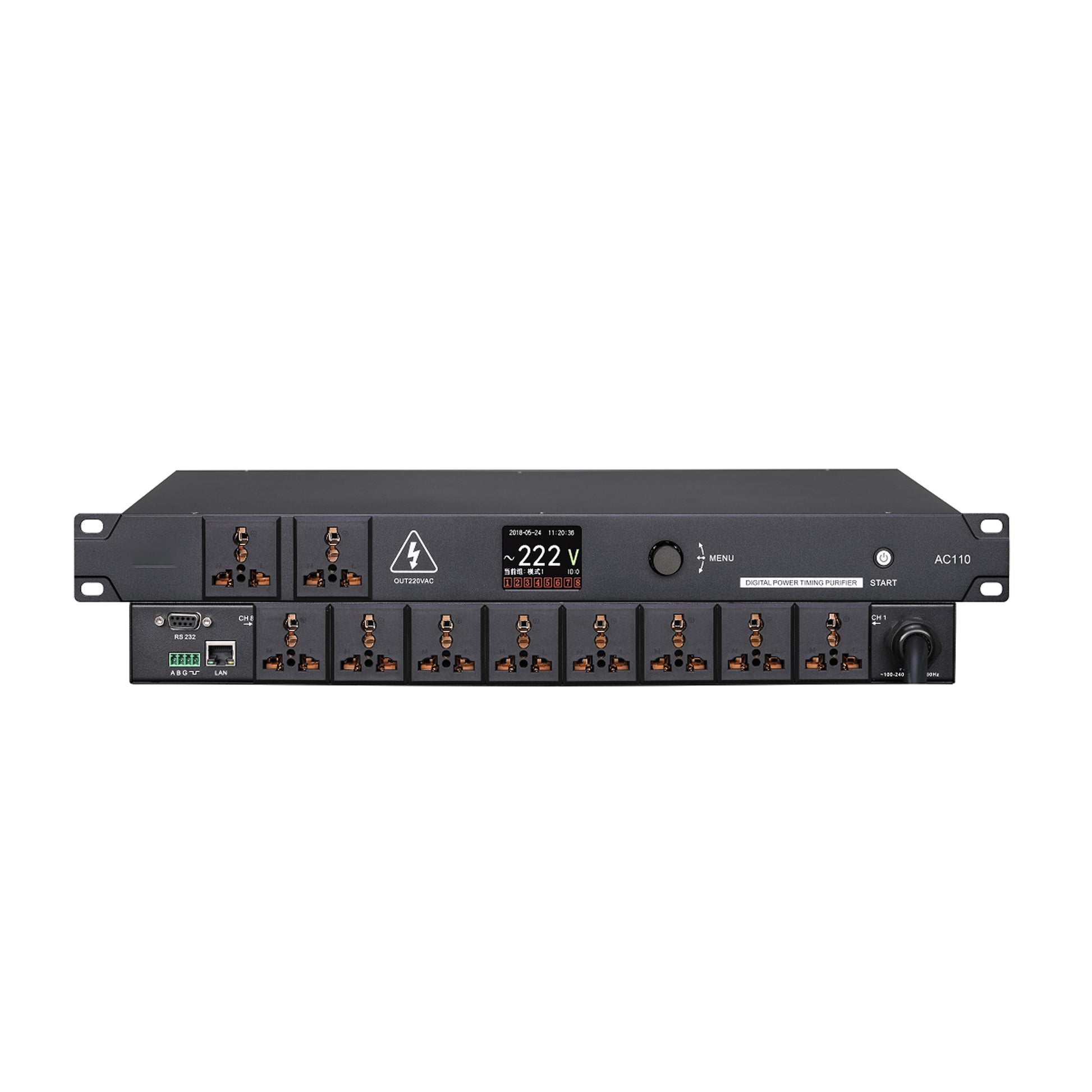

Product Type: Intelligent Power Sequencer
Rated Output Voltage: AC 220V, 50/60Hz
Output Channels: 8 Controlled Channels Plus 2 Auxiliary Channels
Delay Time Per Channel: 0–999 Seconds
Display: 2-Inch TFT Color LCD
Display Information: Voltage, Date, Time, And Channel On/Off Status
Rated Output Current Per Channel: 16A
Total Rated Output Current: 30A
Total Output Power: 7000W
Maximum Output Power Per Channel: 2000W
Scene Memory: 10 Presets
Timer Function: Supported
Control Interfaces: RS485, RS232, And RJ45
Remote Control: PC Software And Android Mobile App
USB Output: 5V DC
Panel Lock: Supported
Gross Weight: 4.5kg
Package Dimensions: 536 × 410 × 80mm
